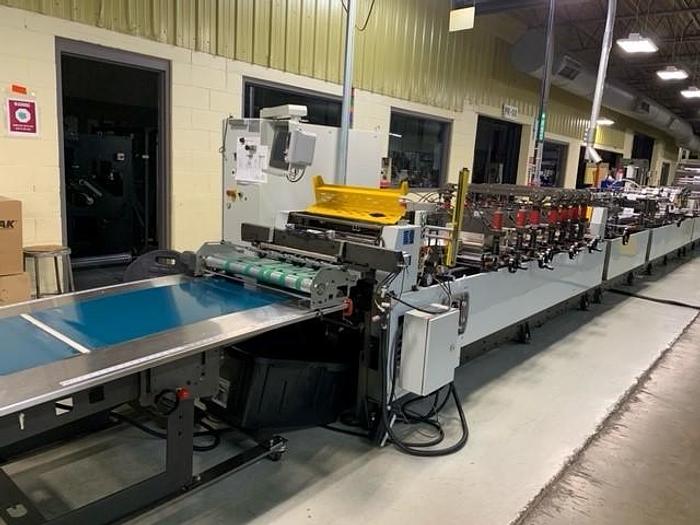

Sun Center 2017 Flat Bottom Pouch Machine

Sun Center 2017 Flat Bottom Pouch Machine

orCall 631-968-0900

Description

SUN CENTRE USA SCFBP- 600BX-M MULTFORMAT FLATBOTTOM POUCH MACHINE -

MODEL YEAR 2017 -

110 PPM FOR MAX MACHINE SPEED -

PLC CONTROL -

RESUME MODE ALLOWS SEAL QUALITY SET-UP AT SLOW SPEED -

PANASONIC SERVO DRIVES AND MOTORS -

DELTA INVERTERS -

DELTA TOUCHSCREEN INTERFACE -

FATEK PLC CONTROL SYSTEM -

ADJUSTABLE DOUBLE CUT GUILLOTINE KNIFE & FLYING KNIFE WITH 2 DOUBLE CUT SIZES BASIC MACHINE SPECS -


MATERIAL WIDTH = 1200 MM -

MATERIAL DIA = 800 MM -

POUCH WIDTH = 85 MM TO 300 MM -

POUCH LENGTH = 200 TO 600 MM -

GUSSET SIZE = 70 MM TO 200 MM -

POWER = 208-230, 3 PHASE, 50/60 HZ -

FOLDING SECTION UPGRADED FOR 2 SIDE SEAL, AND STANDUP -

SIDE GUSSET & PRIMARY WEB ACCUMULATORS FOR SPLICE ON THE FLY -

MULTI FORMAT CONVERTING CAPABILITY ALL WITH ZIPPER, APLIX, AND VELCRO -

BOX BOTTOM POUCH -

QUAD SEAL POUCH -

FOLDOVER 2 SIDE OR 3 SIDE SEAL -

PLOW IN BOTTOM GUSSET STANDUP POUCH (SINGLE WEB) -

EXTENDED PACKING TABLE -

HIGH CLEARANCE CROSS SEAL BARS FOR BETTER HEAT DISSIPATION DURING MACHINE STOP -

3 PHOTO EYE TENSION CONTROL ZONES -

CONFIRMED BOX POUCH SIZE CAPABILITIES FROM ACTUAL PRODUCTION ORDERS -

SIDE GUSSET HEIGHT = 6.5” TO 16.25” -

GUSSET DEPTH (SIDE & BOTTOM) = 2.25” TO 7” -

POUCH WIDTH 3.5” TO 12” -

POUCH HEIGHT 8” TO 2


unit can be seen in production in Cincinnati

Specifications

ManufacturerSun Center
ModelSCFBP-600 BX-M Multi FOrmat Flat BOttom Pouch Machine
Year2017
ConditionUsed
Stock NumberCONS 4583-0054
