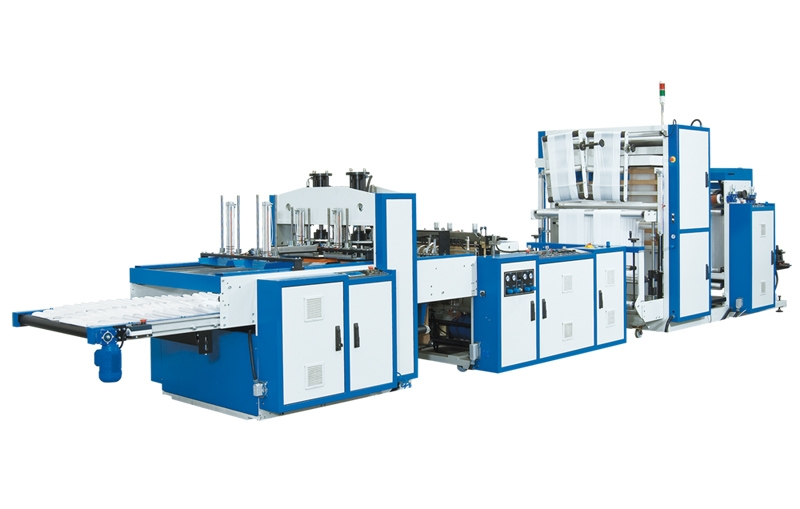

NEW (made-to-order) Gur-is Double Lines T-Shirt Bag Machine with Fully Automatic Press, Slit-Seal and Post Gusseting Units

Double Lines T-Shirt Bag Making Machine with Fully Automatic Press, Slit-Seal and Post Gusseting Units

Unwinding, Edge Guiding, Hot slitting and Double Gusseting units:

» Hydraulic Roll Lifting ,Edge Guiding and Unwinding Unit

» Single Hot knife slitting system.

» Double line gusseting system. Easy adjustment mechanism.

Cutting and Sealing Unit:

» Servo Motor and Invertor Control System.

» Bag length, set number can be changed via screen. Bag counting, machine speed can be seen on the screen

» There is one photocell. Ability to produce printed bags and none-printed bags

» Machine can produce double line printed bags when you use Hot slitting and Gusetting units

» Ability to work with High Density Poly Ethilene(HDPE) , Low Density Poly Ethilene(LDPE) and Recycled Polyethilene materials.

» The machine would stop and give information on the screen when `Roll is empty`, `The print mark is not in right position`, `The bags are jammed on the welding area`.

» All bags are stacked on hot and cold pins those are located 10 cm inside from the handle side of the bag

» Thanks to zigzag unit, the welding lines are not superimposed on the other bag`s welding line

Double Line Full Automatic Bag Punching Section :

» Full automatic working with Siemens Plc and Siemens Operator Panel

» The Bag Length is entered on Operator Panel. Then Machine works completely automatic. You don’t need to adjust sensor places when you have changed the length.

» Two independent Hydraulic cylinders, valves, motors and pressure adjustment switches system for perfect cutting quality.

» Extractors Pneumatic Valve and Piston for punching waste for each line.

» Lower Disc is rotated by Ac motor in order to change the cutting point of the Punching Knife

» The bag packages are arranged in a row on the conveyor. The conveyor is included as standard.
Quantity: 1
