124" gearless 2 color in-line flexographic printing press (new built to order)
Have one to sell?
ConditionNew
New
Discover the power of precision with the 124" gearless 2-color flexographic printing press from CCS. Built with heavy-duty construction, this new model offers servo-driven operation, PLC control, and versatile printing speeds up to 350 fpm. other sizes available. Call for a quote.

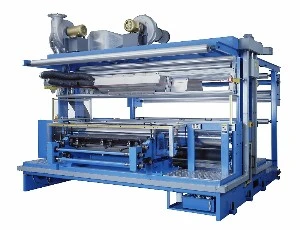

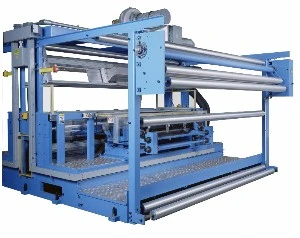

124" gearless 2 color in-line flexographic printing press
The press is rigidly constructed with 2" heavy duty ground side plates;

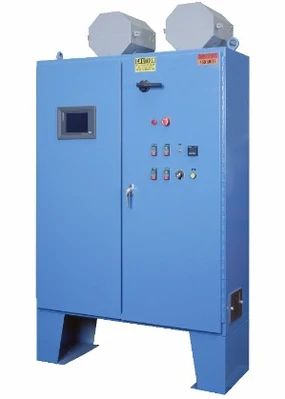

All press functions controlled by PLC and touch screen;
Servo driven gearless operation;
Standard repeat 20" - 48"; optional variable repeat 20" - 180" (without checking print cylinders);

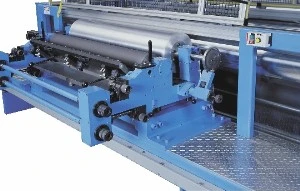

vector duty motor and controls for main drive; station drives: four (4) axis servo motors; pneumatically activated infeed nip; electric drying; three (3) high flow dryer boxes; hydraulic throw offs; totally enclosed doctor blade chambers; capable of printing two colors on one side or one color on each side.
Maximum speed 350 fpm.
Different web and print widths configurations available.
Note: Price based on configuration with 6 month lead time - please call 631-968-0900 to receive full quote.
