CCS Single Turret Winders

CCS Machinery’s Single Turret Winders are custom designed to allow our customers to run several types of product of different material, thickness, speed, width, and roll diameter to allow versatility within their manufacturing system. These winders are available with many different features to assure a wide range of winding needs is accommodated, while maintaining excellent roll quality.

Standards Features:

- Precisely sized motors and drives to handle your most extreme requirements
- COTS (Commercial off-the-shelf) parts used to allow for quick access to spares
- Forward and reverse winding
- Automated pressure control through the PLC
- Precise tension control
- Complete machine control from the HMI
- Electronic Tapered Tension
- Lay-on roll carriage or pivoting lay-on
- Variable frequency AC drives
- Closed-loop nip and spindle control
- Remote access for servicing
- Spindle torque control safety during manual roll transfer
- Leading edge safety features

Optional Features:

- In-feed Nip
- Shaftless winding
- Bi-directional flying-knife auto transfer
- Bi-directional flip-knife auto transfer
- Slitting assemblies
- Static transfer
- Shaftless winding adapter for winding of any length
- Film accumulator station for stop-and-go roll transfer
- Gap Control

Example configurations

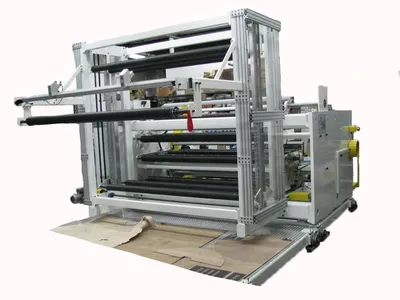

- 136" Single Turret Winder With Lay-On Roll Carriage, Flying-Knife Auto Transfer, and In-Feed Nip, 30" Roll OD
- 64" Single Turret Winder With Lay-On Roll Carriage, 24" Roll OD
- 86" Single Turret Winder With Lay-On Roll Carriage, Flying-Knife Auto Transfer, and Accumulation Station, 30" Roll OD
- 42" Single Turret Winder With Pivoting Lay-On Roll, 24" Roll OD
- 86" Single Turret Winder With Lay-On Roll Carriage, Flying-Knife Auto Transfer, and Accumulation Station, 30" Roll OD
- 56" Single Turret Winder With Lay-On Roll Carriage, Heated Flying-Knife Auto Transfer, "Swing-Out" Winding Shafts For Easy Roll Unload, 16" Roll OD
