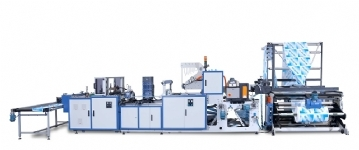

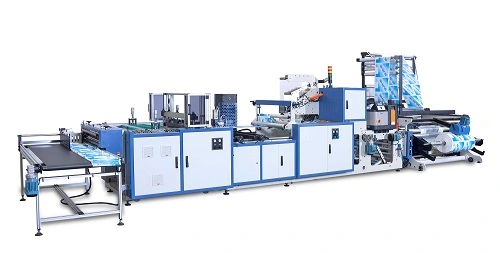

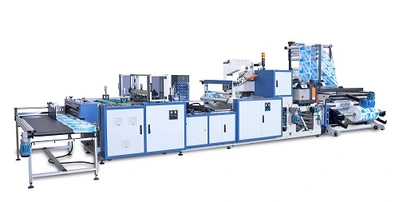

NEW (made-to-order) Gur-is Glue Patch Handle Bag Making Machine with Conveying Belt System: TY-850 GP

Glue Patch Handle Bag Making Machine with Conveying Belt System

TY-850 GP

» Glue Patch Attachment Unit

» Conveying Belt Stacking System

» Handle Maker Unit

» Turnover Side Sealing Unit for PE

» Hydraulic Roll Lifting

» Centerfold System

» Edge Guide with Ultrasonic Sensor

» Bottom Gusset

» Pre-seal Unit

» Print Registration Photocell

Max. Width of film for Unwinder (mm) / 1600
Bag Length (mm) / 300-750
Bag Width (mm) / 200-700
Bottom Gusseting(mm) / 30-80
Max. Patch Film Roll Diameter(mm) / 600
Patch Film Roll Width (mm) / 140
Patch Film Length (mm) / 150
Patch Film Thickness (mm) / 0.080-0.090
Max. Production Speed (pieces/ min) /
Handle Bag / 250
Glue Patch Handle / 180
Thickness of the Film (mm) /
HDPE / 0,020 -0,080
LDPE / 0,040- 0,080
Total Air Consumption (litre/ min) / 400
Total Installed Power (kW) / 30
Machine Sizes(m) /
Length / 10
Width / 2,2
Height / 2,6
