NEW (made-to-order) Gur-is High Speed Wicket Bag Making Machine

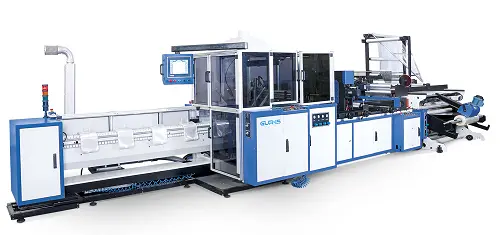

Gur-is High Speed Wicket Bag Making Machine

» German Made Beckhoff Brand Industrial PC, 7 pcs. Servo Motors and Servo Drive System

» 8- Rotary Arms

» Five Stacking working Stations

» Wicket Punch Holes

» Vacuum Unit (Blower System) For Waste of Wicket Punch Holes

» Edge Guide with Ultrasonic Sensor

» Turnover side Sealing Unit for PE

» Turnover side Sealing Unit for PP

» Hydraulic Roll Lifting

» Centerfold System

» Bottom Gusset

» Print Registration Photocell

WT-650 / WT-850
Max. Width of film for Unwinder (mm) / 1300 / 1600
Bag Length 'Sealing Width' (mm) / 200-650 / 200-850
Bag Width 'Draw Length' (mm) / 150-420 / 150-420
Max. Production Speed (pieces/ min) / 330 / 330
Thickness of the Film (mm) / 0,018-0,070 / 0,018-0,070
HDPE / 0,018 -0,030 / 0,018 -0,030
LDPE / 0,025- 0,070 / 0,025- 0,070
PP / 0,020-0,050 / 0,020-0,050
Total Air Consumption (litre/ min) / 500 / 500
Total Installed Power (kW) / 30 / 33
Machine Sizes(m) / /
Length / 9,5 / 10,1
Width / 1,9 / 2,1
Height / 2,4 / 2,7
