NEW (made-to-order) Uteco Crystal Flexo Printer

Made-to-order Crystal Flexo Printer

Excellent quality energy saving flexo printing
The flexographic machine designed for printing on materials indicated for packaging. It adapts to different applications that require high automation, minimizing waste of material, ink and energy.

- Flexographic printing
- Medium and long runs
- Film, plastic, paper
- Food & liquid packaging

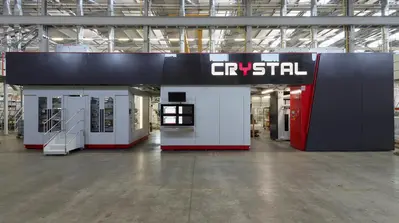

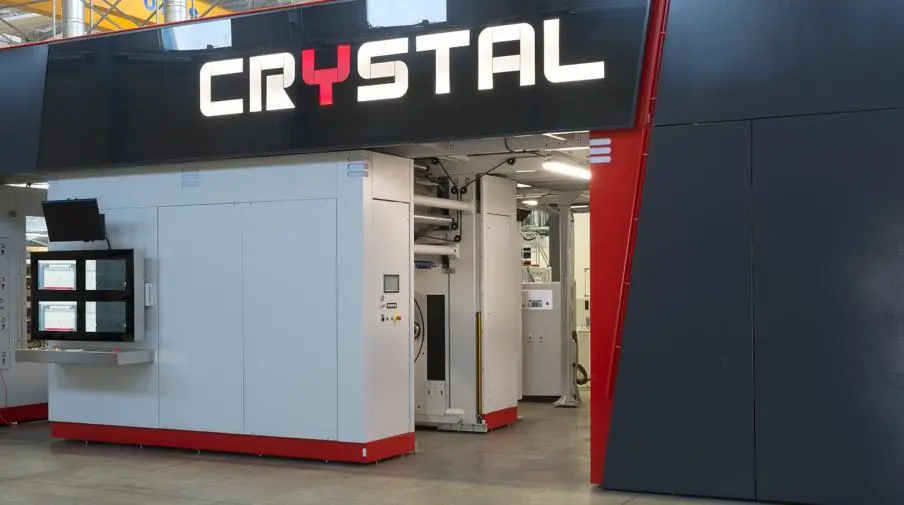

Crystal is the Uteco machine that stands out for its automation systems capable of reducing job change times and waste of materials and inks used. It achieves a printing speed of 500m / min.

The original and innovative design also makes it suitable for other printing applications where it best applies the potential offered by the advanced UDD® direct transmission technology, which distinguishes it by allowing it a very high precision, constant and continuous in the printing process, in addition to automated and energy-saving operation.

The standard configuration of the Crystal includes a front rewinder and an unwinder that make it much more compact and allow better management of the reels. The basic equipment can be developed with optional equipment, including flexo and in-line rotogravure units and the application of UV, UVLed, EB lamps.
Mechanical speed (m/min): 500
Min. print repeat (mm): 290 / 440
Max. print repeat (mm): 850
Print widths (mm): 800 / 1600
Material widths (mm): 850 /1650
Inks: water based - solvent based, UV/EB
Colors: 10
Tension range (dan): 2 + 40
Reels diameter (mm): 800 - 1000 - 1300
Dimensions (m): 16 x 7.5 x 7
Reel diameter (mm): 800 - 1000 - 1300
