NEW (made-to-order) Uteco Crystal SIL Flexo Printer

Made-to-order Crystal SIL Flexo Printer

Synthesis of speed and quality for special flexographic printing applications
The fast SIL flexo printing machine, the most suitable for printing on folding cartons and materials used in liquid packaging.

- In line flexographic printing
- Short and medium runs
- Cardboard, aluminum
- Labels and adhesive labels

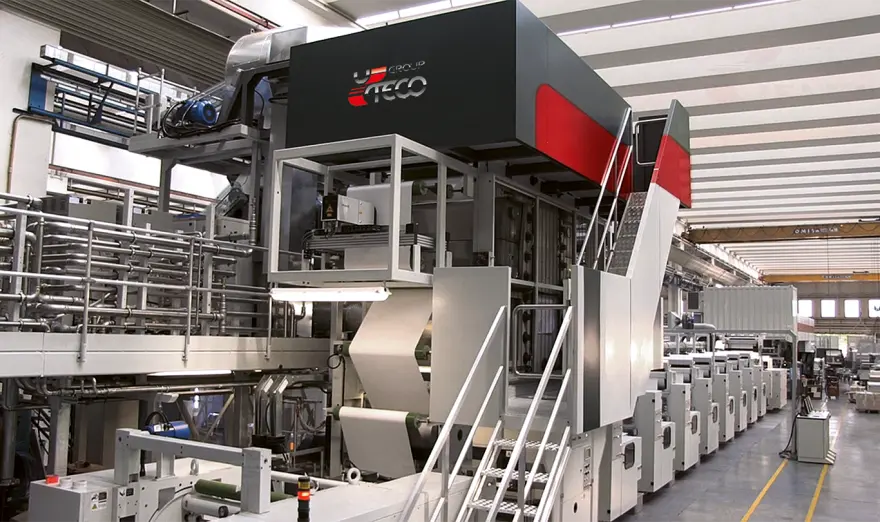

Crystal SIL is the Uteco machine designed mainly for printing on folding cartons, liquid packaging, adhesive labels, aluminum without support, laminated substrates and applications in the security market. It achieves a printing speed of 500m/min.

The standard configuration of Crystal SIL, supplied with up to 12 colors, includes servomotors on each printing unit, anilox sleeves and cliché sleeves, combination of flexo and gravure units, hot melt applications, silicone and different types of varnish.

Depending on the final application, it can be equipped with hot air drying hoods, UV, UVLed lamps or EB units for wetflexo. The basic configuration can be developed with further equipment on request, including in-line units for different types of coating or lamination.
Mechanical speed (m/min): 500
Min. print repeat (mm): 290 / 440
Max. print repeat (mm): 850
Print widths (mm): 800 / 1600
Material widths (mm): 850 / 1650
Inks: water based - solvent based, UV/EB
Tension range (dan): 2 + 30
Reels diameter (mm): 800 - 1000 - 1300
