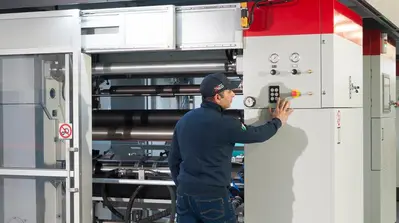

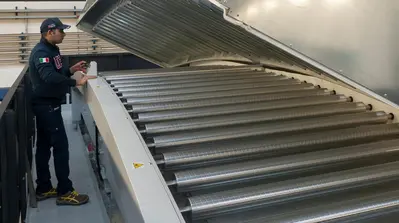

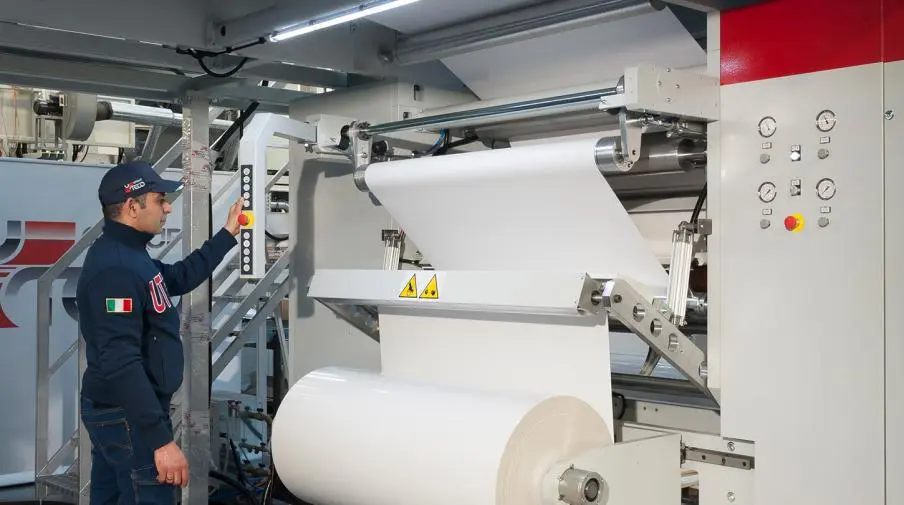

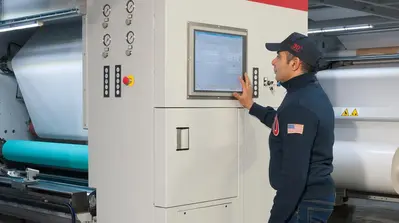

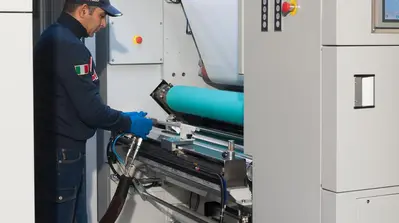

Introducing the Uteco Mistral Coater and Laminator, a new, made-to-order machine that offers modern, compact technology for multi-process coating. Ideal for film, paper, and aluminum, it's versatile for food and liquid packaging needs.
Made-to-order Mistral Coater and Laminator
Modern and compact laminator with multi process coating system
Multiple laminating processes in a machine suitable for laminates working on a wide range of materials.
- Laminating and coating
- Short, medium and large runs
- Film, paper and aluminum
- Food & liquid packaging
The most innovative coating and laminating Uteco machine.
Mistral is equipped with innovative technologies to work on a wide range of materials: pe, pp, opp, bopp/met, pet, aluminum foils, paper, pvc, nylon.
Mistral consists in two separated coating units, one for solventless adhesive and one for water and solvent based adhesive, that allow the reduction of job change time. A single machine includes different types of coating: solvent-based, water-based, solvent-less, in primer register and lacquering.
The standard equipment can be integrated with the in line cutting unit and additional flexo and roto printing stations.
Max/min material width (mm): 750 ÷ 1550
Max coating width (mm): 1500
Min coating width (mm): 730
Max coating speed (m/min): 500
Unwid./rewin. max diameter (mm): 1000
Unwinder tension (dan): 2 ÷ 40
Rewinder tension (dan): 4 ÷ 50
Max reel weight (kg): 1500
Min. size (m): 13.8 x 3.7 x 6.1
