NEW (made-to-order) Uteco Mistral MV Coater and Laminator

Made-to-order Mistral MV Coater and Laminator

Two integrated processes in one solventless flexo laminator
The coating and laminating machine optimal for printing in register matte varnish and for solventless lamination: two integrated process ensuring efficiency and cost saving.

- Laminating and coating
- Short, medium and large runs
- Film, paper and aluminum
- Food & liquid packaging

Mistral MV is the optimal laminator for printing in register matte varnish and for solventless lamination.

The integration of these two processes is the main advantage of this machine, with high efficiency at low investment cost and short amortization timings.

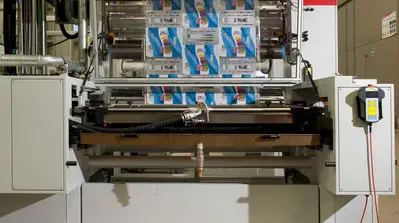

The configuration consists in a flexo unit positioned between the rewinder and unwinder, for the printing of a matte or sparkling varnish, in register with the preprinted substrate. This flexo unit is equipped with the Uteco technology UDD®, that gives the sparkling, matte and satin effects.

It also counts a drying tunnel, for fast varnish drying, a secondary rewinder and the solventless laminating process.

This machine can be integrated with a corona treatment for the primary and secondary film, in line cutting unit and other options, including the Uteco patented job changeover systems.
Max/min material width (mm): 1050 ÷ 1550
Max coating width (mm): 1500
Min coating width (mm): 730
Max coating speed (m/min): 400
Unwid./rewin. max diameter (mm): 1000
Unwinder tension (dan): 2 ÷ 40
Rewinder tension (dan): 4 ÷ 50
Max reel weight (kg): 1500
Min. size (m): 14.5 x 4.5 x 5.8
