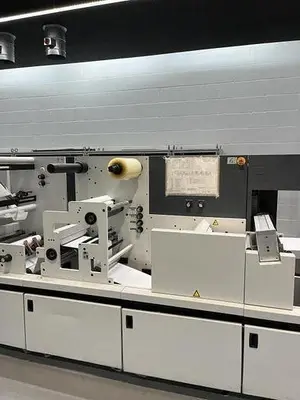

Used 2013 ABG DIGICON SERIES 2 | Printing & Converting, label press

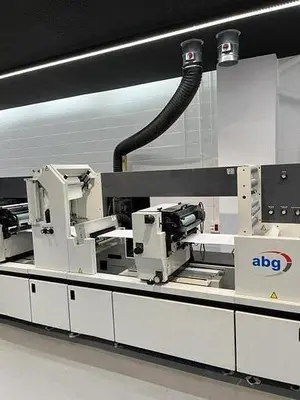

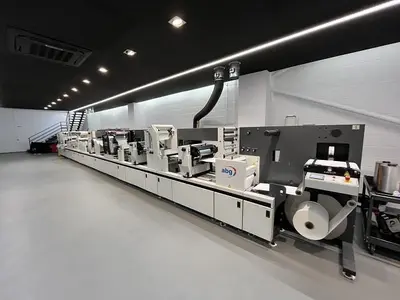

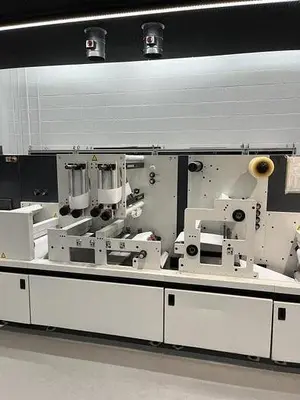

2013 ABG DIGICON S2 12" WIDE 3 COLORSEMI-ROTARY LABEL CONVERTING LINE
ABG DIGICON S2

MANUFACTURED 2013

Configuration: 330mm/12" Wide, Semi-Rotary Label Converting Line

Maximum web width 330mm/12"

Minimum web width 180mm/7"

Maximum repeat length 24,5” (622,3mm), FBHF (12”(304,8mm))

Minimum repeat length 2” (50,8mm)

Top Rewind max diameter 600mm/23"

Bottom Rewind max diameter 700mm/27"

Unwind (700mm/27" Max OD)

Web Guide

Splice Table

Corona Treater

Delam

FLEXO (1) with GEW UV Drying

Relam

Web Turn Bars

FLEXO (2) with GEW UV Drying

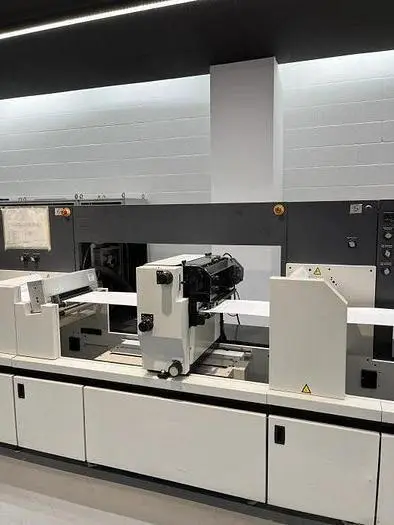

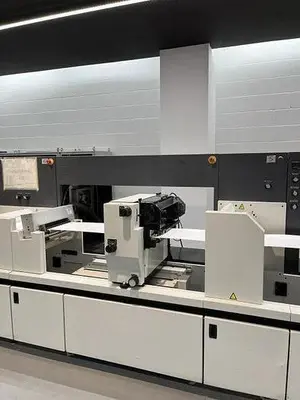

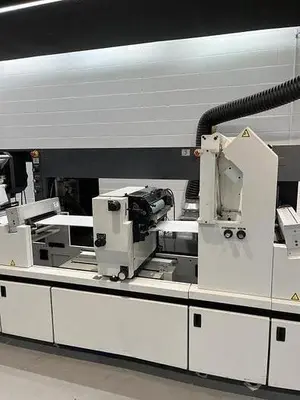

FLATBED HOT FOIL (20T)

FLEXO (3) with GEW UV Drying

OVERLAM

Peel & reveal 3 Ply Cross Over Unit

25.5” Semi Rotary Die Station with K&B Gapmaster (24* Max Repeat)

Waste Rewind

Slitting Unit

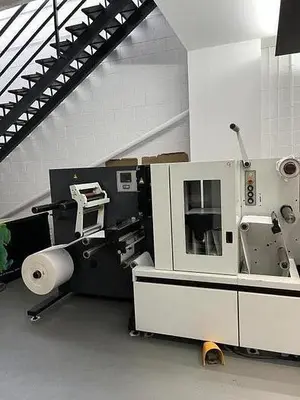

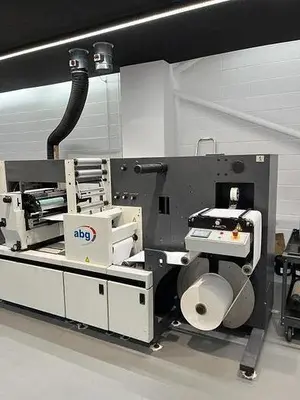

Semi Turret Rewind
