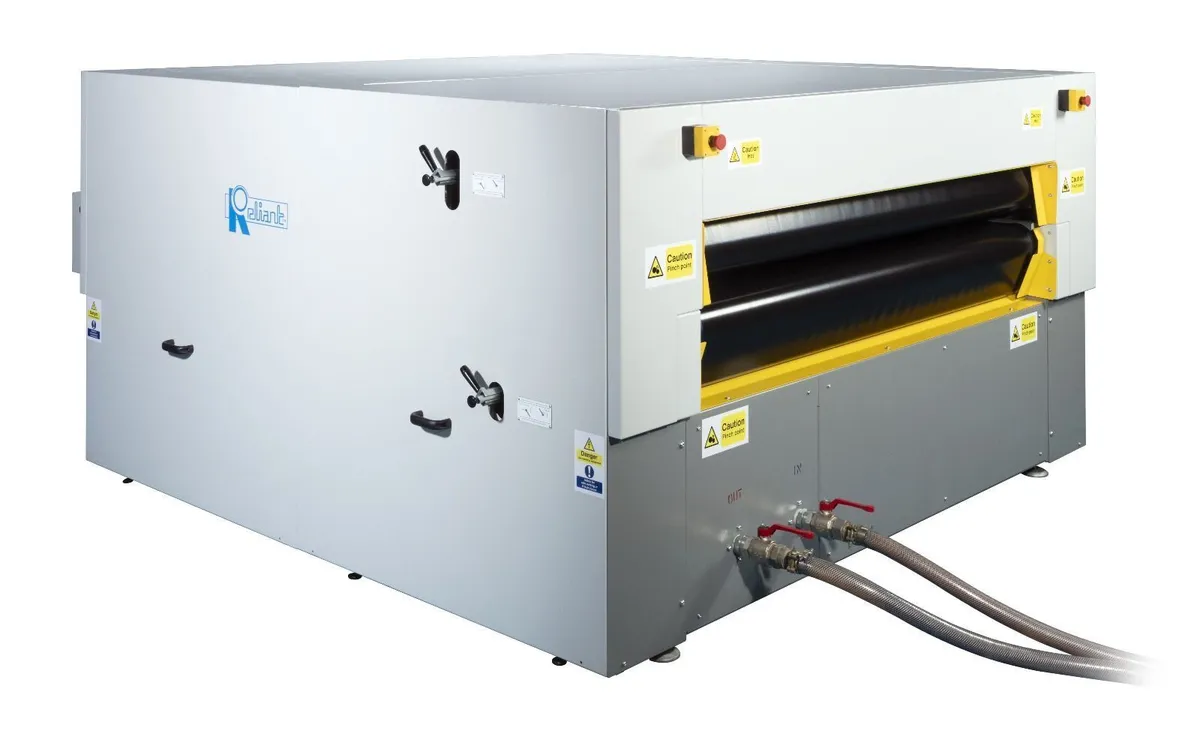

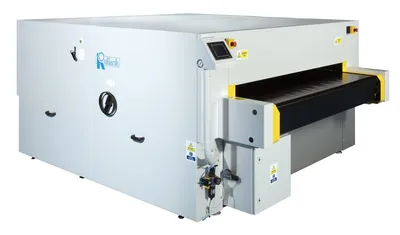

2022 RELIANT Coolstream B180 Laminator, used, Features 72” belt width, 63” heating tunnel with 16 heater modules, pneumatic pressure roller, Synchro-Track belt system, HMI touch screen, and adjustable tunnel height. This was a demo unit.
Reliant Coolstream TAL-B 180 (72”) Laminator
• 72” belt width
• 63” heating tunnel
o 16 heater modules, (8-upper/8-lower)
o Four (4) zones of temperature control in the machine direction (2-upper/2-lower)
o Single (1) zone of temperature control across the machine width
o Heating power – 5.2kW per module, total heating – 83.2kW
o Independent PID micro-processor temperature controls of all zones
• 31.5” cooling tunnel
o 6 cooling modules (3-upper/3-lower) (Portable air-cooled chiller quoted upon request)
• Floating upper modules ensure constant contact pressure for optimum heating/cooling
• Tunnel height adjustment from 0 to 3.0”
o Manual hand wheel tunnel adjustment with digital readout in 0.1mm increments
• Pressure / nip roller system
o Steel pressure rollers with 118 thousandths of an inch precision ground high temperature rubber covers

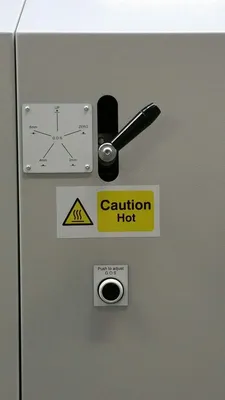

o Mechanical pressure roller interference (0, 1mm, 2mm, 3mm, Raise)
o Pneumatic pressure roller (0-116 psi) via regulator on control panel
• Single ply PTFE conveyor processing belts with low profile scarf splice joint
• 19.7” entry belt extension
• Split side panel system for fast & easy belt replacement
• Felt wiper cleaning bars located on top & bottom belts
• Reliant Synchro-Track belt alignment system with linear actuators
• Running speed range: 5 – 50 feet/minute (other speeds / ratios available)
• Temperature Range: Up 392°F
• Air pressure: 0-116 PSI, 6mm push-in fitting.
• Coolant connections: Two (2) - 1½” BSP male hydraulic fittings
• Electrical: 480 volts/3phase/60Hz power
Full load amperage: TBD
• Safety E-Stops: Four (4) - total (2-entrance & 2-exit (left/right
· Machine mounted OMRON PLC control system

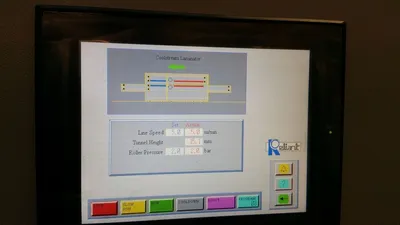

o HMI Touch screen color display
o Operating program memory function
o Reporting, maintenance, and history functions
o Visual warning system
This was the OEM demonstration unit, never used in production.
This machine can be demonstrated in Philadelphia
Some warranty available from OEM
