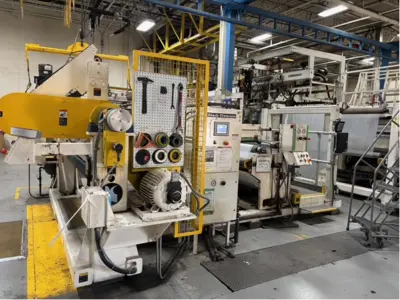

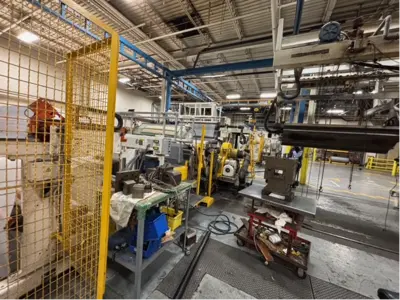

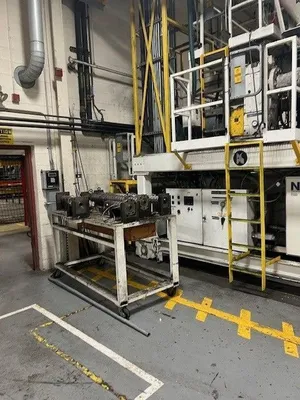

Used 1999 BLACK CLAWSON extrusion coating line | Extrusion Lines, Coating

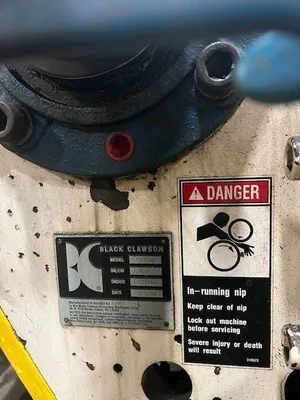

1. Make: Black Clawson

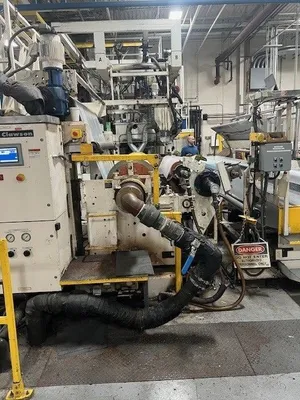

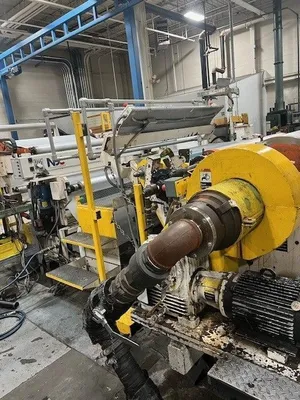

2. Twin 3.5” screw extruder ( 2x)

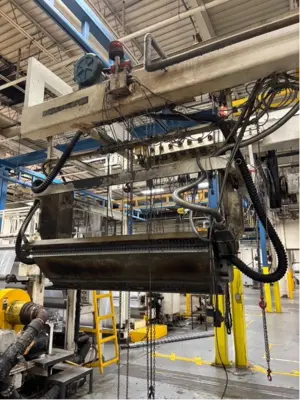

3. 66” EDI H40 sheet auto die. With a spare backup manual
4. ABA or AB configuration

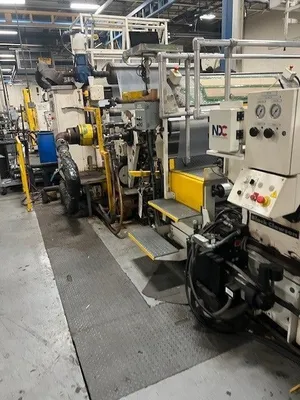

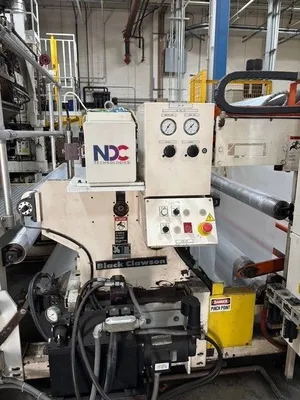

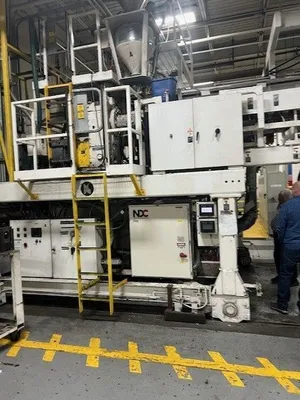

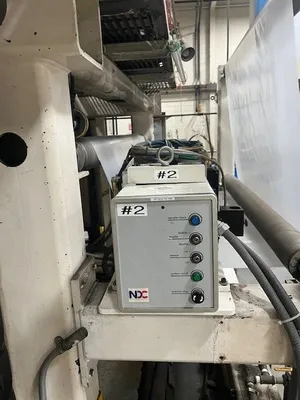

5. Purafil Exhaust system

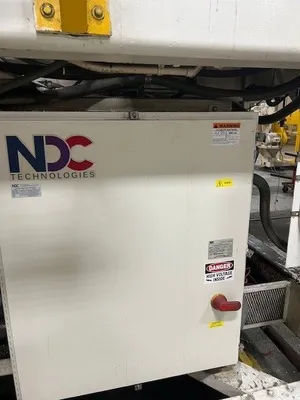

6. NDC thickness system
7. 30” min, 60”max width
8. Machine Roll face width: 65”
9. 400fpm max

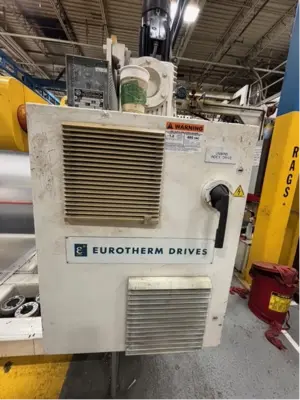

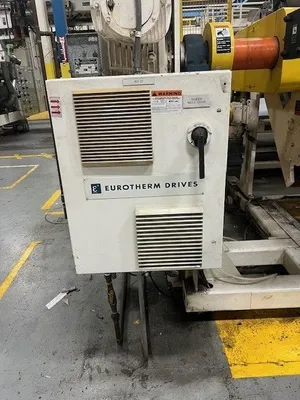

10. Extruder A and B: 150hp DC drives each with 30:1 L/D. Screw speed range: 5-83 rpm.
11. Output: 200-750 lbs./hr.
12. Tension ranges:

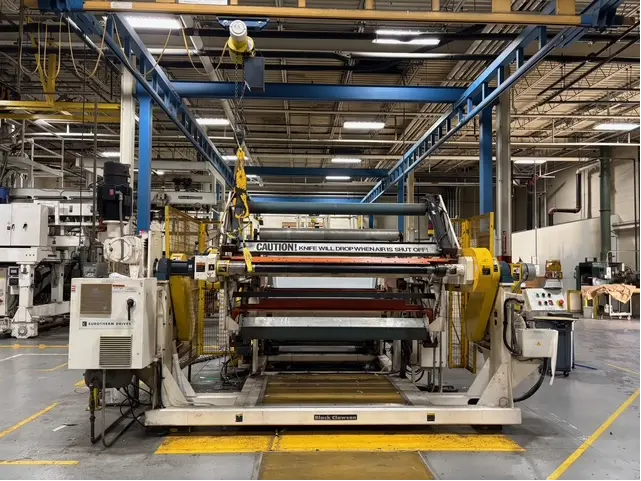

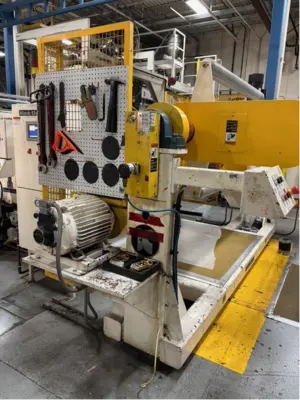

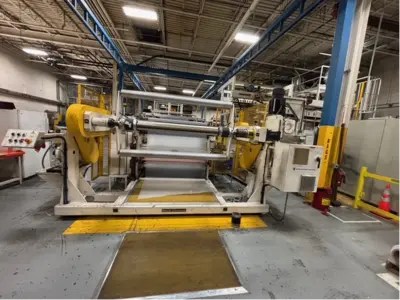

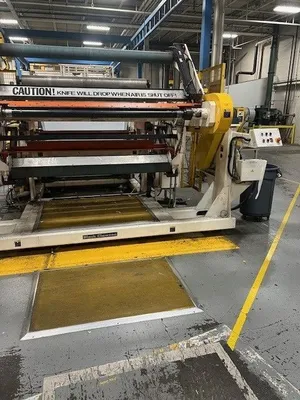

1. 8-90 lbs. 0.25 – 1.5 PLI Main Unwind
2. 15 – 120 lbs. 0.25 – 2 PLI Process
3. 15 – 120 lbs. 0.25 – 2 PLI Winder
4. Automatic 20% taper tension, adjustable up to 50%

Serial Numbers For EDI Dies:
1. Manual: 05-25135
2. Auto: 17-38215-E (UltraFlex H40)

66” dies.

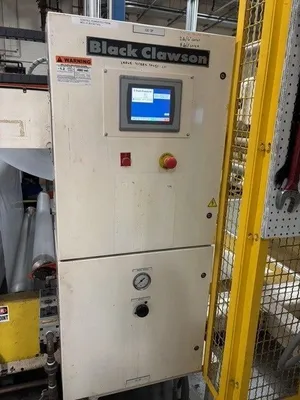

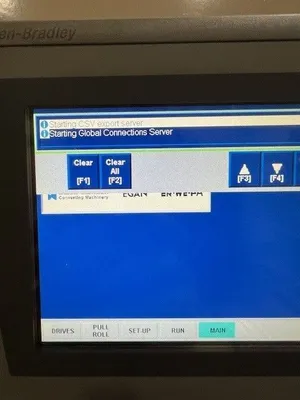

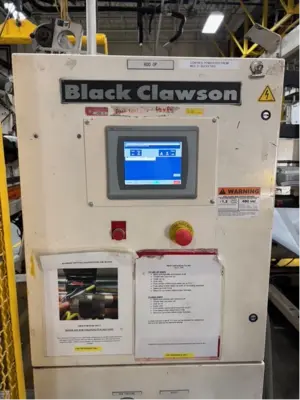

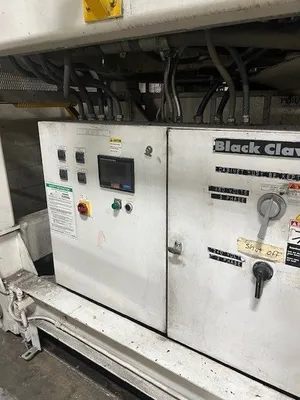

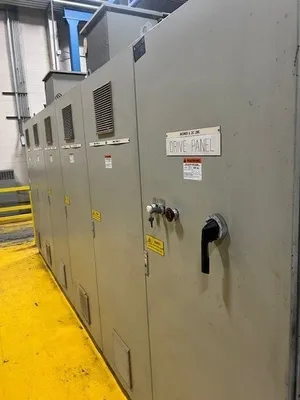

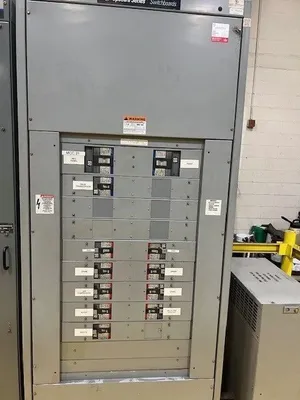

Line had had a complete controls update in 2024

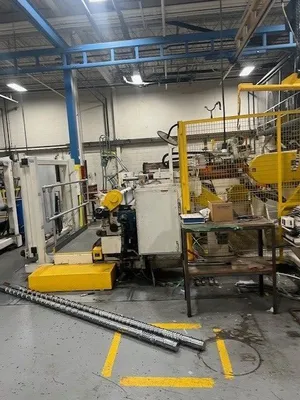

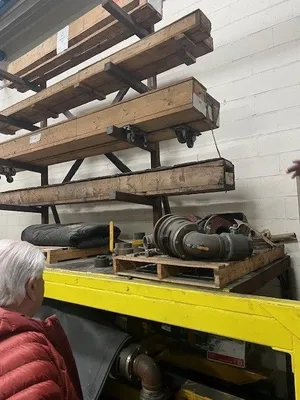

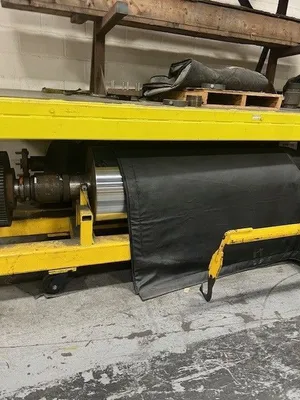

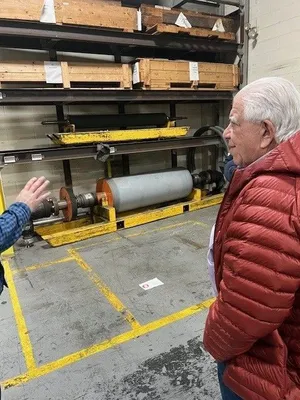

spare rolls ands screws included.

Buyer responsible for removal

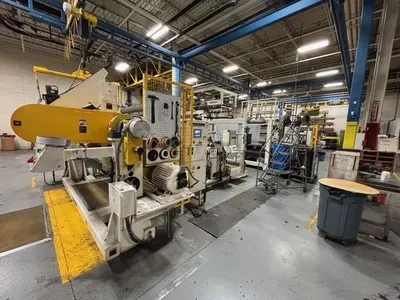

overall foot print dimensions are:
48' x 43'
