2019 KARLVILLE KS-DSUP-400 pouch machine in excellent condition. Features include ultrasonic zipper crush, vacuum punch waste, gusset folding upgrade, and more. speeds up to 200 cuts/min.

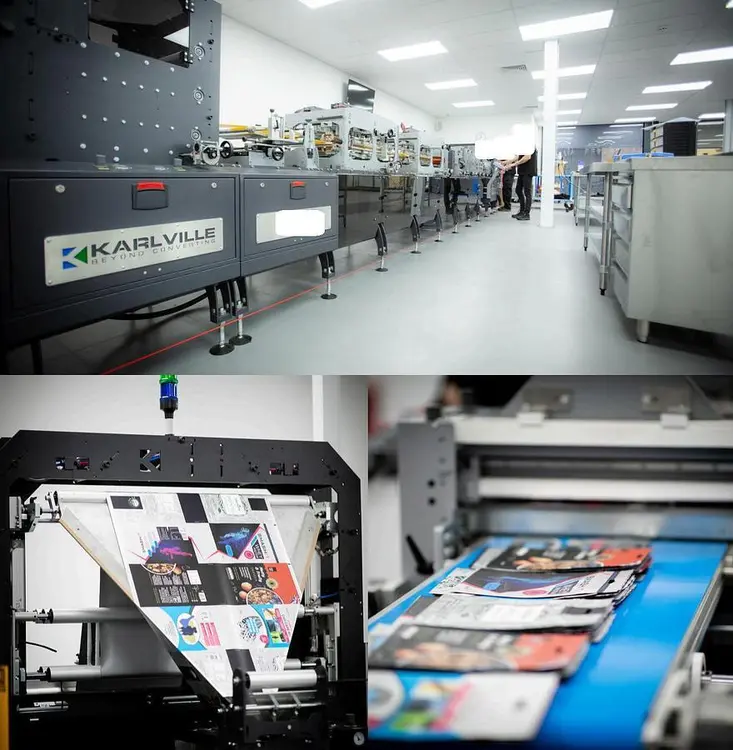

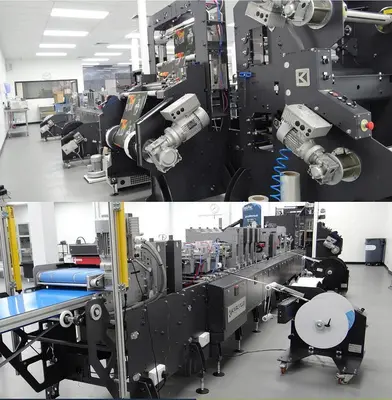

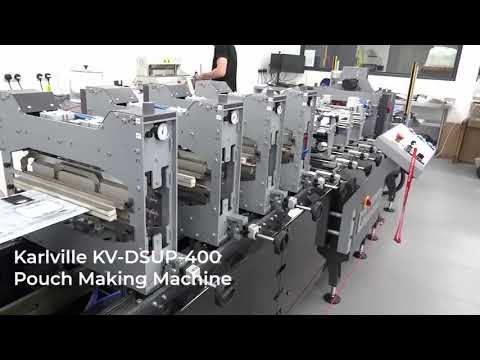

Karlville stand up pouch machine for sale.
In excellent condition and ready for sale today.

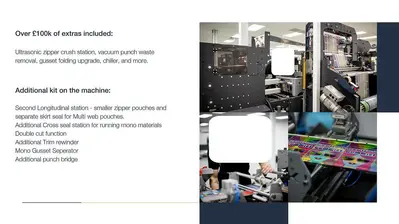

With the following additional extras...
Ultrasonic zipper crush station
Vacuum punch waste
Gusset folding upgrade
Second longitudinal station for smaller zipper pouches
Separate skirt seal for multi web pouches
Additional cross seal station for running mono materials
Double cut function
Additional trim rewinder
Mono gusset seperator
Extra punch bridge

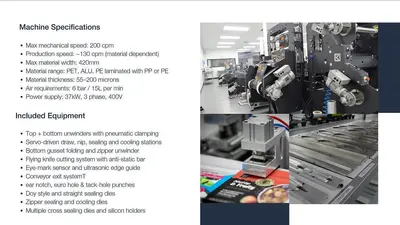

Specifications
Manufacturer Karlville
Model DSUP-400
Year 2019
Condition Used
Stock Number 00083

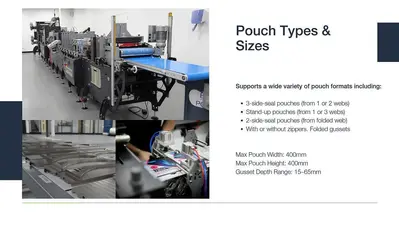

Type of Pouch Produced 3x side seal pouches (from 1 or 2 webs) | Stand up pouches (from 1 or 3 webs) | 2x side seal pouches (Folded web) | With/without zippers or folded gussets
Pouch Width (mm) 400
Pouch Height (mm) 400
Gusset Depth Range (mm) 15-65
Machine speed 200 cuts per min
Material Thickness Range 55-200ยต
Suitable for the following Materials PET, ALU, PE laminated with PP or PE
Anti Static System Yes
seller will load into container
