Used 2006 SML 2.5m 5 layer cast stretch film extrusion line | Extrusion Lines, Cast Lines

Film extrusion lines - Cast film - CA260
Description of the Machine and Accessories
Manufacturer: SML
Model: CAST COEX 5
Year: 2006
Number of layers: 5
Overhaul/renovation: yes, recent revamp to part of controls
Film structure: ABCDE
Material: Stretch film LLDPE
Film width (mm): 2500
Speed (m/min): Mech speed 650 mpm- net speed at rewinder 550 mpm
Output (Kg/h): Nominal capacity 3400 kg /h - Max net capacity at rewinder 2300 kg/h
.
Thickness range 8- 50 micron
Mech speed 650m/min
Extruder 1 Layer ref: : A
Screw diam 1: 90mm
Description 1: Gravimetric dosing units Doteco 2Comp.
Extruder 2 Layer ref: : B
Screw diam 2: 120mm
Description 2: Gravimetric dosing units Doteco 4 Comp.AC motor, hydraulic screen
changer
Extruder 3 Layer ref: : C
Screw diam 3: 120mm
Description 3: Gravimetric dosing units Doteco 4 Comp. AC motor, hydraulic screen
changer
Extruder 4 Layer ref: : D
Screw diam 4: 120mm
Description 4: Gravimetric dosing units Doteco 3 Comp.AC motor, hydraulic screen
changer
Extruder 5 Layer ref: : E
Screw diam 5: 90mm
Description 5: Gravimetric dosing units Doteco 2 Comp.AC motor, hydraulic screen
changer
Head description: Automatic Die head with Internal deckling, Eltex edge pinning,
Die width (mm): Gross width 3100 - 2100 mm
Chill roll unit: Double chill roller
Thickness control system: Yes
Web guide: Oscillating frame
Rewinder max reel diameter (mm): Jumbo rolls and Machine rolls - Spindle 3" and 6"
Rewinder description: Turret rewinder for machine reels and jumbo
Additional Information:
Regrinder for edges and Erema Re-granulator

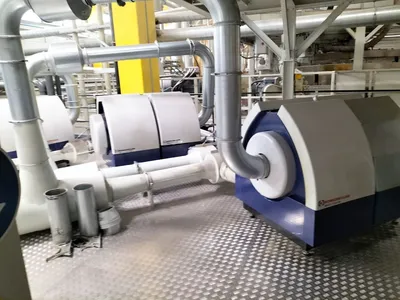

3 Kongskilde exhaust for edge trims

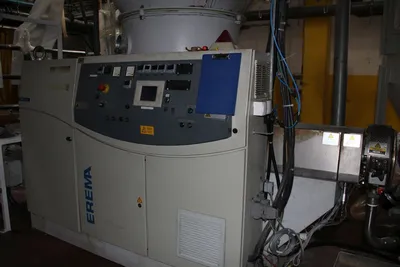

EREMA recycling regranulation unit
Additional extruder. 8 for recycled material supplied by Erema unit .
Provision for edge encapsulation .
Complete end of the line rolls handling and palletizing
This equipment was last in operation in January 2025

note: there are 2 lines available.
special package pricing for the purchase of both together.
see listing CA 277
