Used 2020 MOKON HF4C96DT | Extrusion Other, heater
Have one to sell?
ConditionUsed
2 available

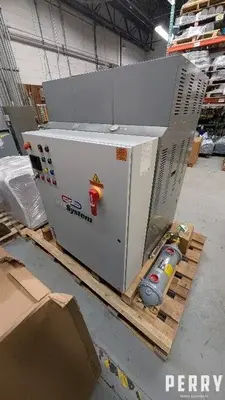

un-used MOKON HF4C96DT heater for extrusion processes, 2020 model with 96 kW heating capacity, centrifugal pump, and 58-gallon reservoir. Features include a single control zone, robust heat exchangers, and safety-enhanced NEMA 4 components. 2 units available

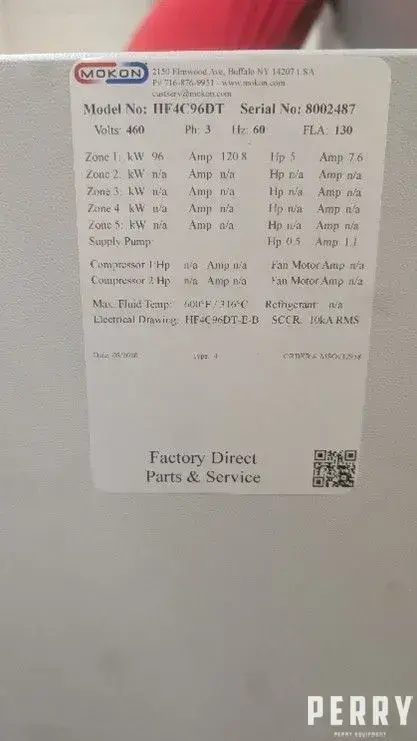

Unused 96 kW Mokon HF-2 Series Circulating Oil Temperature Control System, 460 V, 3 Ph, 60 HZ, FLA = 126.6 amps, containing the following features and capabilities:
- One zone of control
- 96 kW of heating capacity
- Ability to pump up to 60 GPM and 56 PSI via a centrifugal pump
- 58 gallon capacity cool oil reservoir eliminates thermal shock to the heat exchanger and has a built-in safeguard minimizing fluid from the system contacting the processing floor
- Main power door disconnect
Additional features:
- Built for use in a sheltered non-environmentally controlled room with a panel heater, reservoir heater, thermostat, and NEMA 4 electrical enclosure with NEMA 4 components
- Reservoir heat exchanger upgraded to 21 sq. ft.
- 25 sq. ft. heat exchanger in line with process with cooling solenoid valve
