84" ROSENTHAL DOWN-CUT SHEETER WITH SLITTING AND PUNCHING SYSTEM MODEL WM-7-HHDUBSHTCIPH-12

Rosenthal WM-7 84-inch down-cut sheeter
Extra-heavy-duty cutting blade
Driven mechanical cradle unwind
Modified unwind with two 6-inch steel rollers
Designed to support rolls up to approximately 24-inch outside diameter and 500 pounds
Tidland Heavy-duty shear-slitting system with multiple slit positions
Nine additional bottom rings for the female shear-slitting roll
Cut-length tolerance specified at approximately ±1/16 inch over a 36-inch cut
Dynamic edge guide with approximately ±1.5-inch correction stroke
Integrated 48-inch-long solid output conveyor

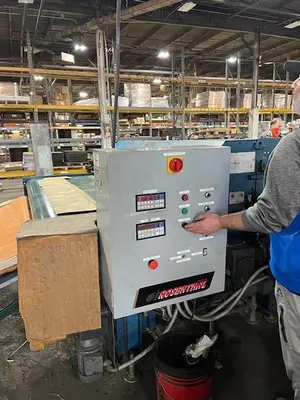

Stainless-steel operator table with emergency stops on both sides
Four-station hole-punch system
Maximum round-hole size of approximately 1/2-inch diameter
Cross-machine walkway for positioning punch assemblies
Additional idler rolls
Controls modified for alternating cut lengths
End-of-roll photoelectric sensor
24-inch Formica take-off table

Previously used for cutting heavy duty vinyl flooring
