34" Brampton Engineering 1997 TW34A-DT-G-L05 dual turret winder available. 32" diameter, 2,000 lbs roll capacity. Includes gantry crane for loading and advanced control features. Approx. 104"x108"x112". 3" shafts. 600 ft/min. Gap winding.

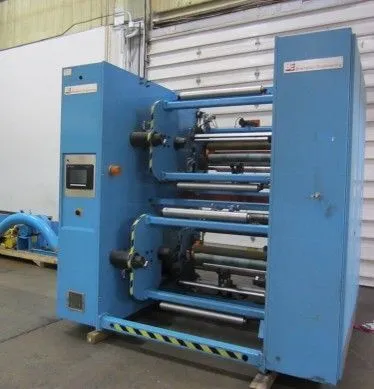

Used 34" Width Brampton Dual Turret Winder, Model TW34A-DT-G-L05

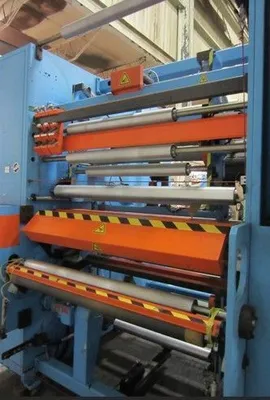

The 34" wide Brampton Dual Turret Winder (Model TW34A-DT-G-L05) is a highly specialized industrial machine built by Brampton Engineering. It is designed for high-efficiency, continuous in-line film winding (such as blown or cast film).
Dual Turret, 2 Position, 600 FPM (according to manual) , 32" Max Diameter Roll, 5 Hp Turret
Spindle, 2,000 Lbs Max Roll Weight, 5 Adjustable Depth Slitting, Auto Cut, 3" Shafts, Allen-
Bradley Panelview 900, With Gantry Crane For Roll Loading,
Winder New in 1997, S/N 15415-8
460/3/60, 60 Amps
Approximate Dimensions & Weight: 104" L x 108" W x 112" H, 18,000 lbs
Key Breakdown of Model Specifications
• 34" Web Width Capability: Engineered to process web paths and layflats up to 34 inches wide.
• TW34A: The technical series designation for Brampton's Turret Winder product line customized for this specific footprint size.

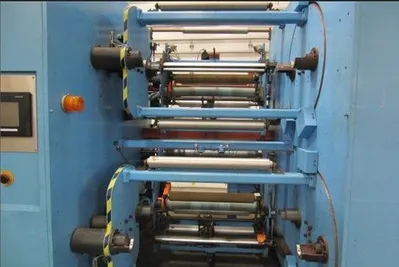

• DT (Dual Turret): Configured with two active winding positions mounted on a rotating turret. This layout allows for zero-downtime flying roll changeovers—one spindle winds the active roll while the operator safely unloads the completed roll and loads a fresh core on the secondary spindle. [1, 2, 3]
• G (Gap Winding Mode): Indicates Gap Winding functionality, an advanced mechanical feature that prevents the lay-on roll from directly pressing against the winding film. This is vital for avoiding blocking, wrinkles, or air entrapment in sensitive, tacky, or barrier film structures.
• L05 (Revision / Configuration Level): The precise design revision control number denoting the factory electrical, component drive layout, and layout specifications.
Core Features & Industry Applications
• Tapeless & Clean Transfers: Part of Brampton’s signature winder family, typically employing systems like their proprietary Zip Knife technology. This delivers zero fold-over cuts during automatic roll transfers, minimizing start-of-roll scrap.

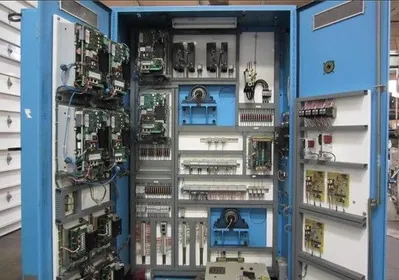

• Advanced Control Architecture: Utilizes continuous dancer-controlled or closed-loop load cell tension feedback driven by high-accuracy AC Vector or Direct Drive Servo motors to prevent film stretching.
• Footprint Optimization: Brampton’s dual turret designs are engineered to take up to 45% less floor space compared to conventional multi-station surface winders.
- The last time operational was 2018
