Used 1989 EGAN cast film line | Extrusion Lines, Cast Lines
Have one to sell?
ConditionUsed
1 available
Used EGAN cast film line from 1989, featuring a 5-layer design and rated at 200 ft/min. Includes 3 Egan extruders with DC drives and melt pumps. Key components: 42" casting unit, turret winder for 3" & 6" cores. Note: some parts not operational since 2021.
Used 40" wide Egan pilot plant cast film line. New 1989. Line is 5-layer design. Rated at 200 feet per minute. Line consists of the following:

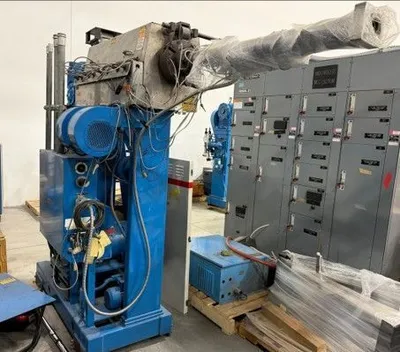

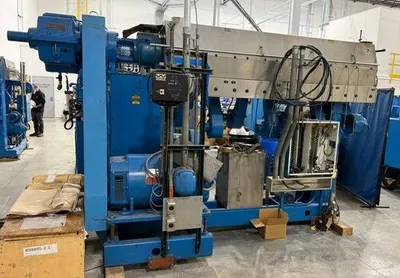

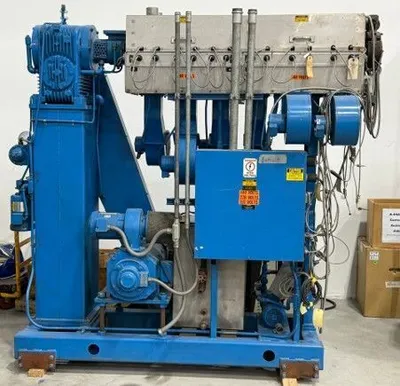

1 — Egan 3.5" Extruder
Manufacturer: Egan
Manufactured: January 1990
FO: FO-08258-08*
Extruder: 3.5"
L/D: 32:1
Drive: 150 HP DC
Melt pump: 10 HP
Electrical ID: ME50105.1
L drawing/equipment ID: L50401D A EXT
MCC: MCCL50393M/4GW
2 — Egan 2.0" Vented Extruder
Manufacturer: Egan
Manufactured: January 1990
FO: FO-08258-22*
Extruder: 2.0"
L/D: 31:1
Vented: Yes
Drive: 25 HP DC
Melt pump: 5 HP
Electrical ID: ME50106.1
L drawing/equipment ID: L50399D B EXT
MCC: MCCL50393M/3DF
3 — Egan 1.5" Vented Extruder
Manufacturer: Egan
Manufactured: January 1990
FO: FO-08258-32*
Extruder: 1.5"
L/D: 32:1
Vented: Yes
Drive: 15 HP DC
Melt pump: 3 HP
Electrical ID: ME50107
L drawing/equipment ID: L50397D C EXT
MCC: MCCL50393M/3AC
- Cloeren 5-layer co-ex block utilized with either 24" EDI or 38" EDI cast film dies.

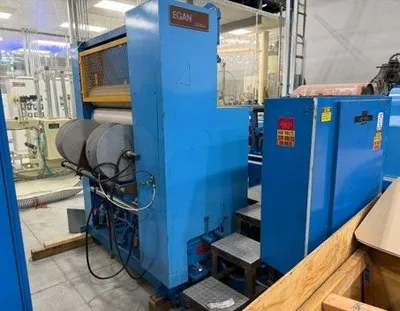

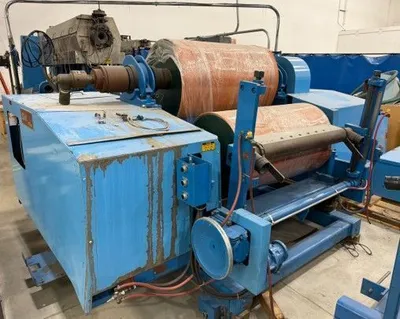

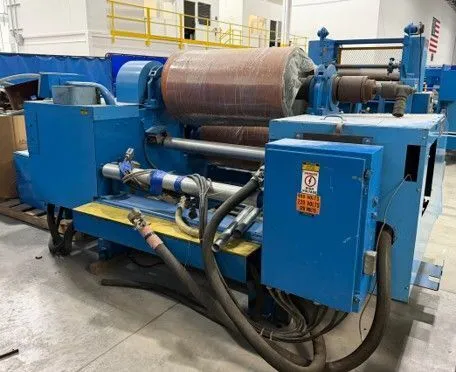

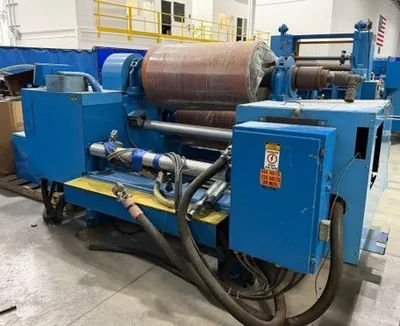

- 42" casting unit with air knife pinning, 42" horizontal C&P unit with 18" diameter Rolls, 12 foot conveyor assembly and Ohmart

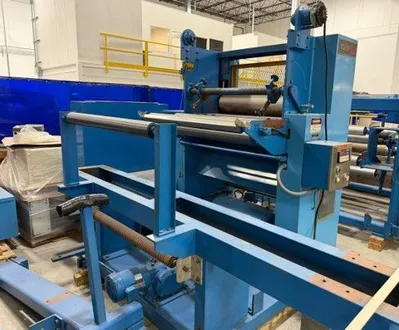

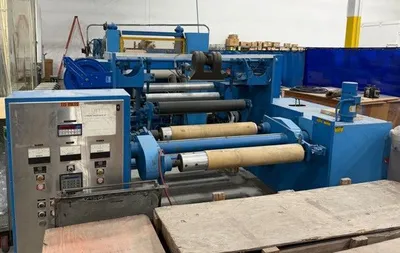

- 2-position single turret winder for 3" and 6" cores, 18" diameter Maximum diameter and shear slitter assembly.
- The last time that all of the pieces of the line were fully operational was 2021
- The extruders are operational and/or can be made operational.
- The downstream is not operational
Used EGAN cast film line from 1989, featuring a 5-layer design and rated at 200 ft/min. Includes 3 Egan extruders with DC drives and melt pumps. Key components: 42" casting unit, turret winder for 3" & 6" cores. Note: some parts not operational since 2021.
Used 40" wide Egan pilot plant cast film line. New 1989. Line is 5-layer design. Rated at 200 feet per minute. Line consists of the following:
1 — Egan 3.5" Extruder
Manufacturer: Egan
Manufactured: January 1990
FO: FO-08258-08*
Extruder: 3.5"
L/D: 32:1
Drive: 150 HP DC
Melt pump: 10 HP
Electrical ID: ME50105.1
L drawing/equipment ID: L50401D A EXT
MCC: MCCL50393M/4GW
2 — Egan 2.0" Vented Extruder
Manufacturer: Egan
Manufactured: January 1990
FO: FO-08258-22*
Extruder: 2.0"
L/D: 31:1
Vented: Yes
Drive: 25 HP DC
Melt pump: 5 HP
Electrical ID: ME50106.1
L drawing/equipment ID: L50399D B EXT
MCC: MCCL50393M/3DF
3 — Egan 1.5" Vented Extruder
Manufacturer: Egan
Manufactured: January 1990
FO: FO-08258-32*
Extruder: 1.5"
L/D: 32:1
Vented: Yes
Drive: 15 HP DC
Melt pump: 3 HP
Electrical ID: ME50107
L drawing/equipment ID: L50397D C EXT
MCC: MCCL50393M/3AC
- Cloeren 5-layer co-ex block utilized with either 24" EDI or 38" EDI cast film dies.
- 42" casting unit with air knife pinning, 42" horizontal C&P unit with 18" diameter Rolls, 12 foot conveyor assembly and Ohmart
- 2-position single turret winder for 3" and 6" cores, 18" diameter Maximum diameter and shear slitter assembly.
- The last time that all of the pieces of the line were fully operational was 2021
- The extruders are operational and/or can be made operational.
- The downstream is not operational
