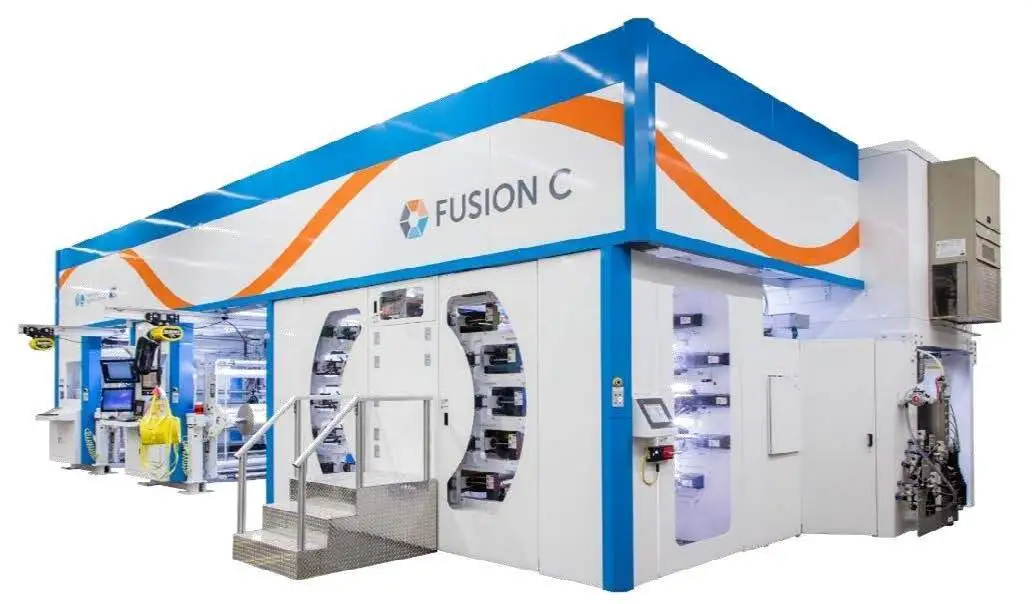

2023 PCMC Fusion C 10 color Gearless CI press 52" wide
Have one to sell?
ConditionUsed
1 available
2023 used PCMC Fusion C gearless CI press with 10 print stations and 52-in web width. Features , 14–30-in repeat range, and 1,500-fpm design speed.
Hand of machine
Left (unwind will be left of print stations when standing in front of press)
Number of print stations
10
Web width range
26 to 52 in (660 to 1320 mm)
Maximum print width
51 in (1295 mm)
Printing repeat range
14 - 30 in (356 - 762 mm)
Machine design speed
1500 (457 mpm)
** (Actual production speed is based on process and other variables)
Emergency stop
100 fpm/second
Splicing/transfer speed
1500 fpm (457 mpm)
Tension range
5 to 78 lb (within the range of 0.12 PLI to 1.5 PLI)
Taper tension range
Adjustable from 1:1 to 10:1 (within tension range)
Web threadup
Manual (using handwheels)
Range of material (subject to material quality and machine tension range):
Polyethylene (LD, MD, HD)
0.00075-0.006 in (19-152 microns)
Polypropylene
0.0005-0.004 in (13-100 microns)
Polyester/Nylon
0.0004-0.002 in (10-50 microns)
PVC
0.0002-0.0014 in (50-356 microns)
Paper and Laminates
Up to 40 lb/ream at full web width (Up to 90 lb/ream at half web width)
Inks/coatings to be used
Solvent- and water-based
Service Requirements
Electric
480 V, 60 Hz, 3 phase (Control: 240/120 V, 60 Hz, 1 phase)
Water
25-55 psig, 45-50 degrees F ((1.7-3.8 bar, 7-10 degrees C))
Compressed air
80 psig (5.52 bars) @ 30 continuous CFM (275 max CFM)
